Ceramic Antenna
-
It has stable mechanical and chemical properties and can operate normally in high-temperature, high-humidity and corrosive environments. Excellent dielectric properties can reduce the loss and reflection of electromagnetic waves, achieving more precise frequency output.
-
Leveraging our expertise in alumina and aluminum nitride metallized circuit technologies, we have achieved miniaturization, lightweighting, and integration of ceramic antennas.
It is mainly applied in navigation and positioning fields such as mobile communication, satellite communication, radar, aerospace, etc.
62.6mm×62.6mm×6mm
Based on the printed circuit board structure, different circuits are designed to match wireless communication devices.

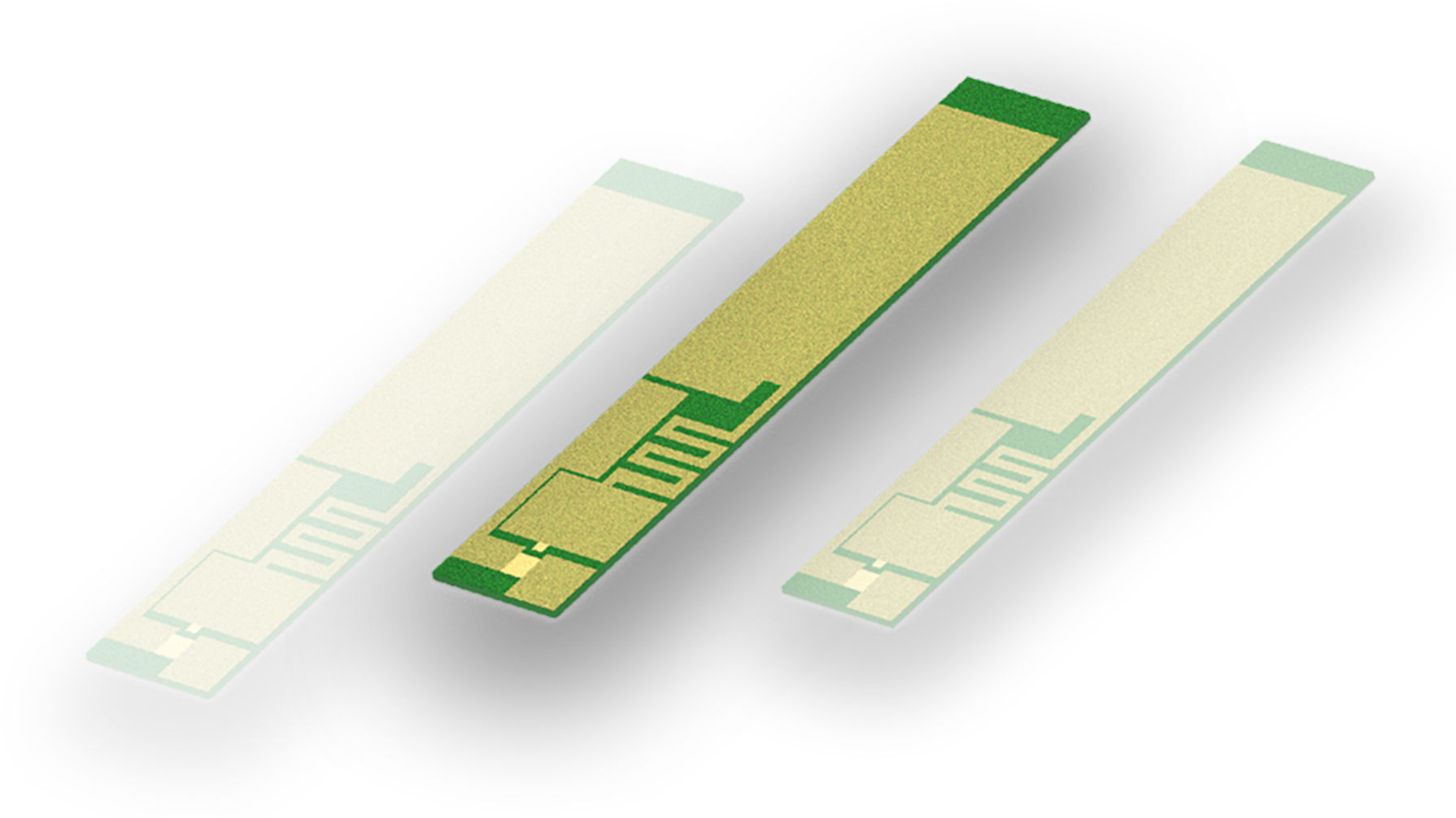

PCB Antenna
99.4mm×17.4mm×1mm
-
It is commonly used in single-band RF modules such as Bluetooth modules, WIFI modules, and ZIGBEE modules.
-
High-frequency PCB board antennas have the characteristics of high gain and low loss on array antennas.
-
It has the ability to design external PCB antennas and has rich experience in adjusting the radiation field shape and radiation gain.

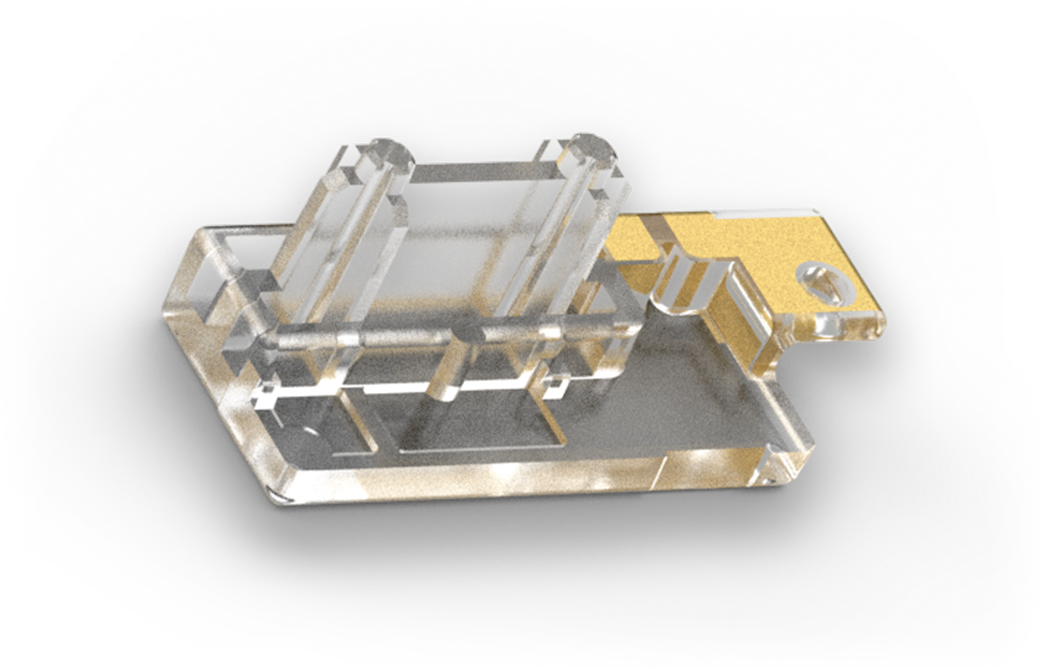

Note Book Antenna
46.45mm×9.35mm×9.65mm
Note Book antennas are mainly used in fields such as notebooks and pads, and are usually divided into WLAN antennas and Bluetooth antennas.
-
With rich experience in NB antenna design and unique MID antenna manufacturing capabilities, it can form circuits on the inner surface of the casing, simplifying the internal space of the entire machine.
-
With mature automated welding capabilities, it can ensure the efficient and high-quality production of products.
-
With the miniaturization and functional diversification of computers, their internal structures have become more compact. As a result, NB antennas have evolved from the initial FPC/PCB plus Cable form to the MID plus Cable style.
It is used in various wireless communication devices, such as mobile phones, tablets, laptops, smart furniture, in-vehicle electronics, etc.

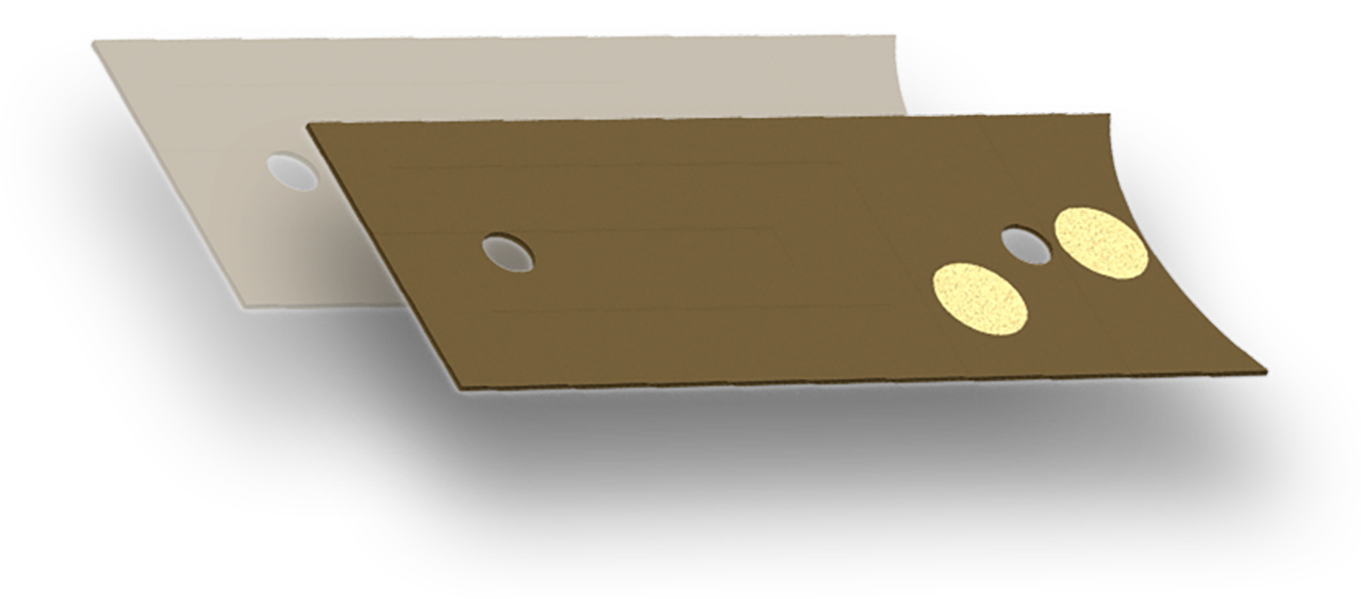

FPC Antenna
21.15mm×8mm×0.15mm
-
Its main function is to convert the received wireless signal into current or other forms of signals that electronic devices can process.
-
With independent R&D and design capabilities, we can provide a wide range of antenna solutions.
-
The antenna is fixed to the non-metallic surface of the machine by adhesive backing, which is low-cost, easy to install and can be manufactured with high repeatability.
